Control panel

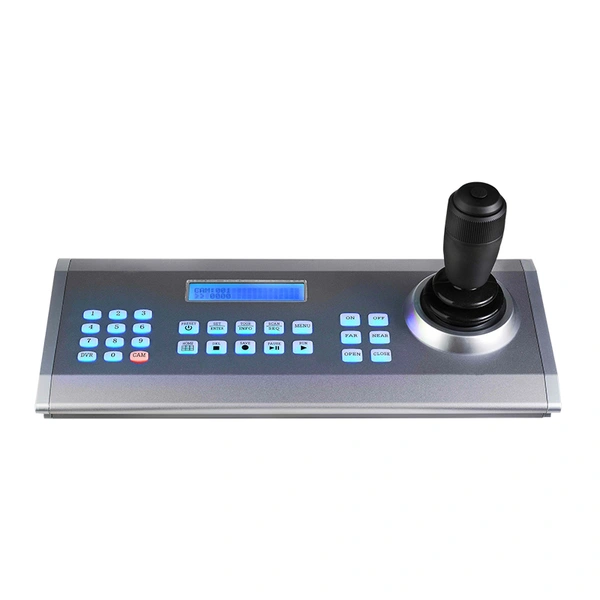

BRT76 Control Keypad

USB interface, no driver required, HID protocol, support Microsoft OS, LINUX, applicable network platform, recording system

Communication interface: RJ45/RS485(RS422)/ RS232/USB(no driver required)



Description

Joystick Joystick: 3 axis + 1 button, optical sensor, high precision

Key Buttons: 28 imported ALPS keys, two-color backlight, adjustable brightness.
Display: LCD, 2 lines, 20 characters, blue backlight
Keyboard material: aluminum alloy shell, side ABS plastic, joystick: aluminum alloy + ABS

Dimensions: 355(L) × 150(W) × 155(H)mm
Weight: 1.47kg (w/o Power supply), 1.89 kg (with power supply), 2.4kg (prepared for shipping)
Operating Temperature: -10°C - 70°C
Relative Humidity: 30% - 90% (w/o condensation)
Power Adapter: AC100-240V-12VDC/1000mA
Power consumption: 2.7 W (not loaded line)


InterfacesConnectors:
Network port RJ45 : for video switching matrix or sub-control keyboard RS485+RS232
RS485: connects to camera, equivalent to RS422 transmitting port, 2000M distance
RS232: camera connection, for RS232 communication cameras (optional)
USB-D: USB2.0 for connecting to computer, server, NVR, etc.
Keyboard model: -485 interface two RS485
-232 interface one RS485, one RS232
