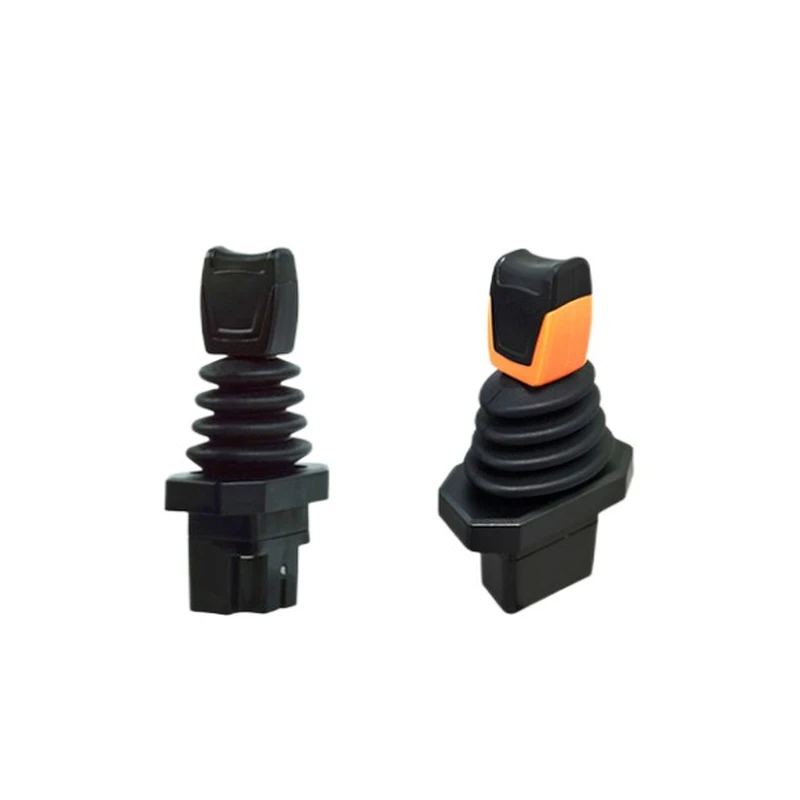

extra low voltage thumb joystick control

BRT105 thumb joystick extra low voltage operating

Extra low voltage operating thumb joystick control, especially suitable for battery working wireless remote control equipment

  • Positioning mode: spring return

  • Operation Angle: ±36 degrees (72 degrees)

  • Power supply: DC3.3V or DC5V

  • Power consumption: ultra-low power consumption, minimum working current 8mA, minimum working voltage 3.01V

  • Signal output: analog voltage signal, a variety of specifications optional

  • Life: more than 5 million times;

  • Temperature range: -40℃ ~ +85℃

  • Protection class: IP67
