BRT60B Series joysticks

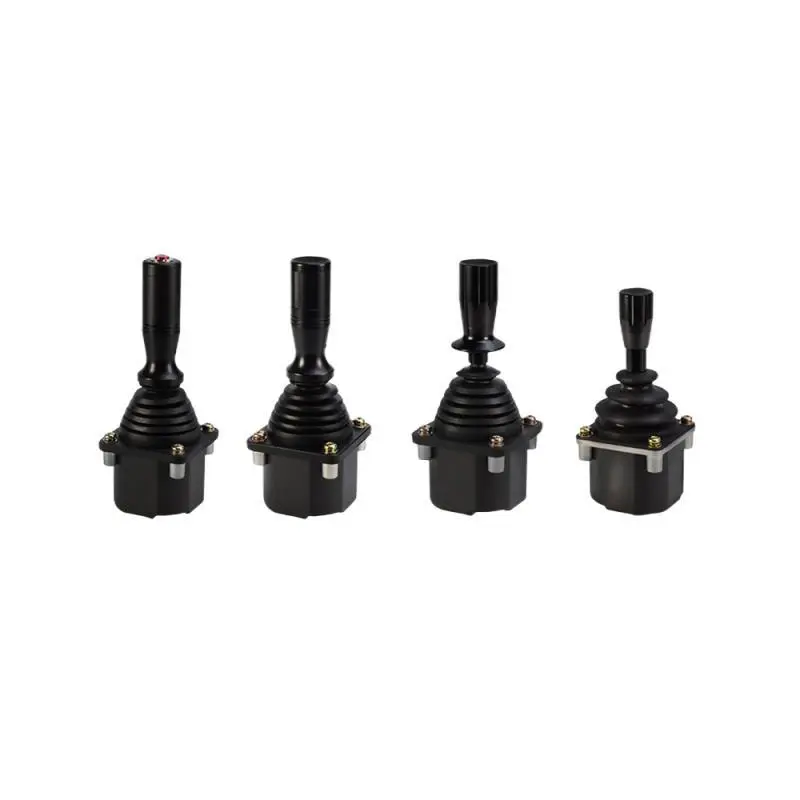

from left in the picture,

  • the 1st one -dual axis 1 button

  • the 2nd&4th -3 axes, XY axis spring return, Z axis resistance positioning, with center gear

  • the 3rd one -Handle down-press function with down-press switch inside


Various output forms are available.

Various upper handles are optional.


Description

  • Shake angle: XY ±22.5°, Z ±120°, resistance positioning, with a mechanical feel in the center

  • Operating range: square or 360° in all derection

  • Guide slot can be selected

  • Power supply: 5V, 12V, 24V, 28V, 36V selectable

  • Signal output: analog voltage 0~5V + switch, RS422, RS485, RS232, USB, CAN

  • Working temperature: -45ºC ~ +85ºC

  • Protection level: IP67 above the panel

  • Service life: >10 million times
