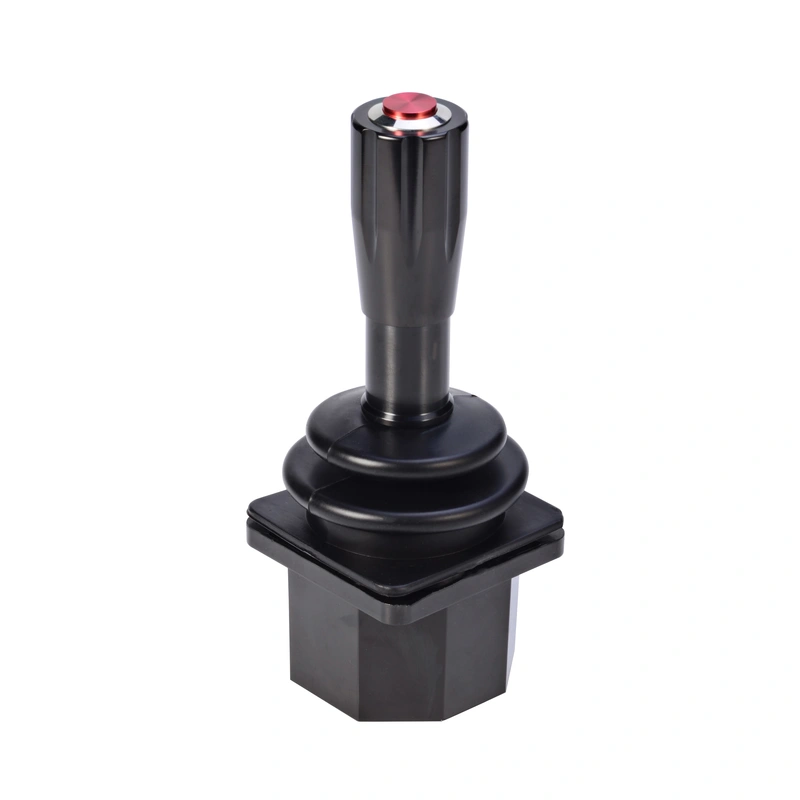

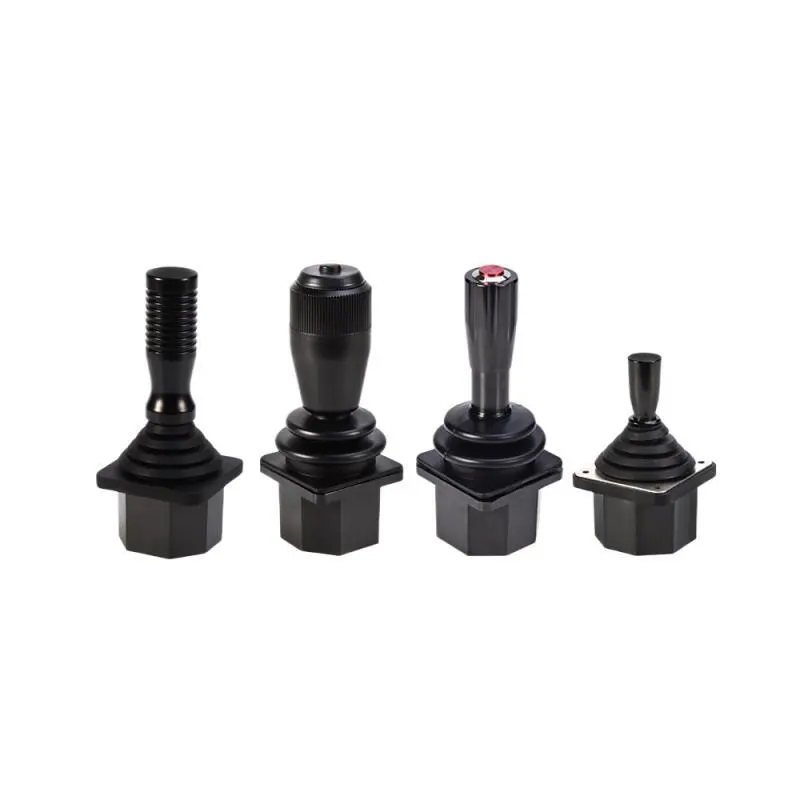

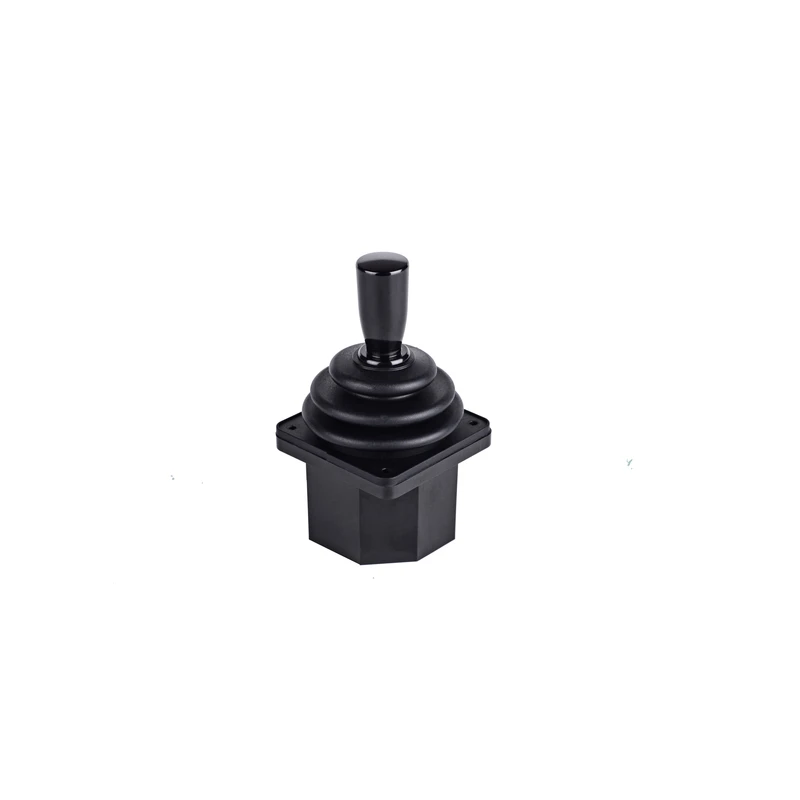

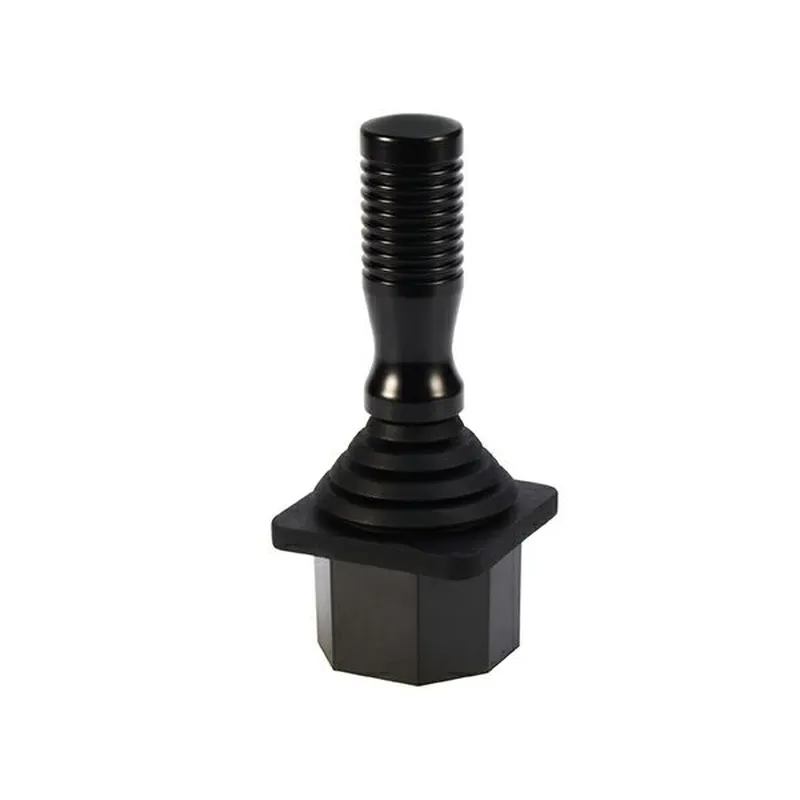

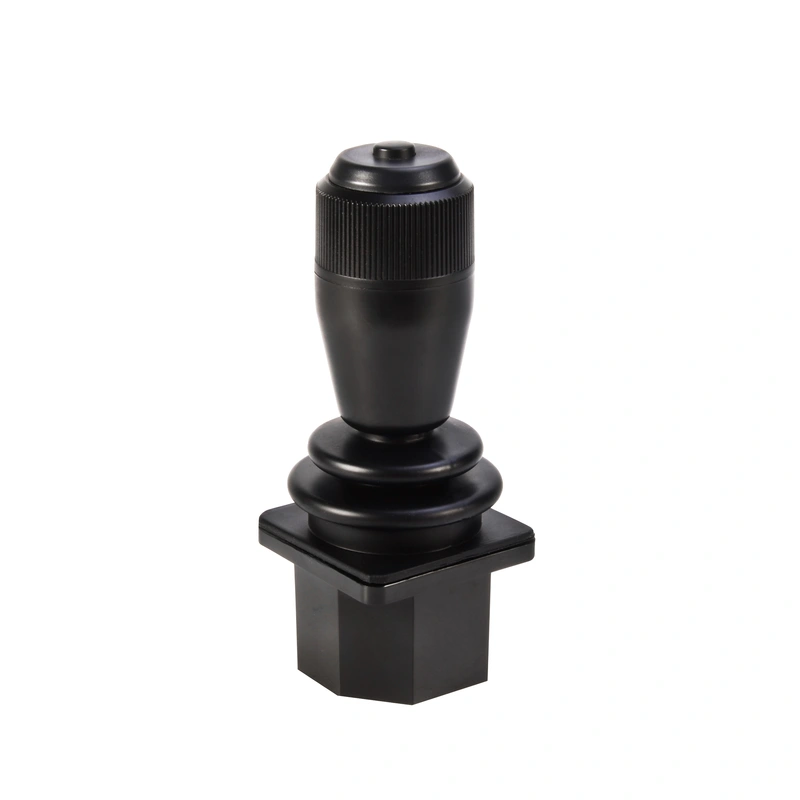

BRT45 Series Hall effect joystick

Optional 1,2,3-axis

Dual axes operation at any angle in any direction.

Hall contactless detection

Switching output optional


Description

  • Optional 1,2,3-axis

  • Hall sensor;

  • Operation angle: XY ±25°, Z ±36°

  • Power supply: DC5V or 12-24V

  • Signal output: analog voltage 0-5V (or 0.5-4.5), analog current 0-20MA, RS232,RS485, USB, CAN (2.0B), PWM (0-500mA)

  • Life: 5 million times;

  • Repeat positioning accuracy: <1%.

  • Operating temperature: -40℃~+70℃

  • Protection level: IP67

  • Proportional valve control with acceleration and deceleration speed, curve, maximum current, minimum current setting function
