Multi axis joystick control

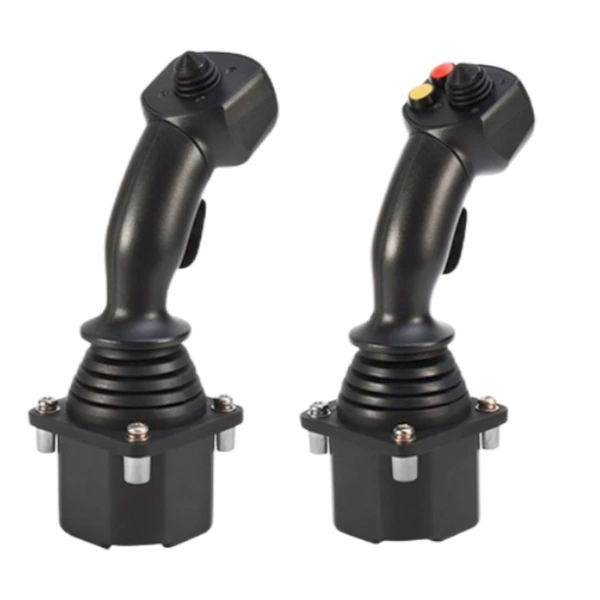

BRT60C Series Multi axis joystick control

This is a combination joystick, the micro rocker on the panel with 1 or 2 axis to make the joystick multi-axis.  for USB interface, the panel micro joystick can be used as a mouse, the main joystick as a joystick, the button can be defined

Automatic spring return,  Cross guide selectable

Panel with BRT25 mini rocker (1 or 2 axes)


Description

  • Main body 2 axes + panel 1-2 axes, total 3-4 axes, 1 rocker switch, front panel up to 2 buttons, 1 button behind panel (optional)

  • Shake angle: +-22.5°

  • Operating range: square or 360°

  • Power supply: 5V, 12V, 24V, 28V, 36V optional

  • Signal output: analog voltage 0~5V + switch, RS422, RS485, RS232, USB, CAN

  • Working temperature: -45ºC ~ +85ºC

  • Protection level: IP67 above the panel

  • Service life: > 10 million times

    60C 尺寸.jpg
