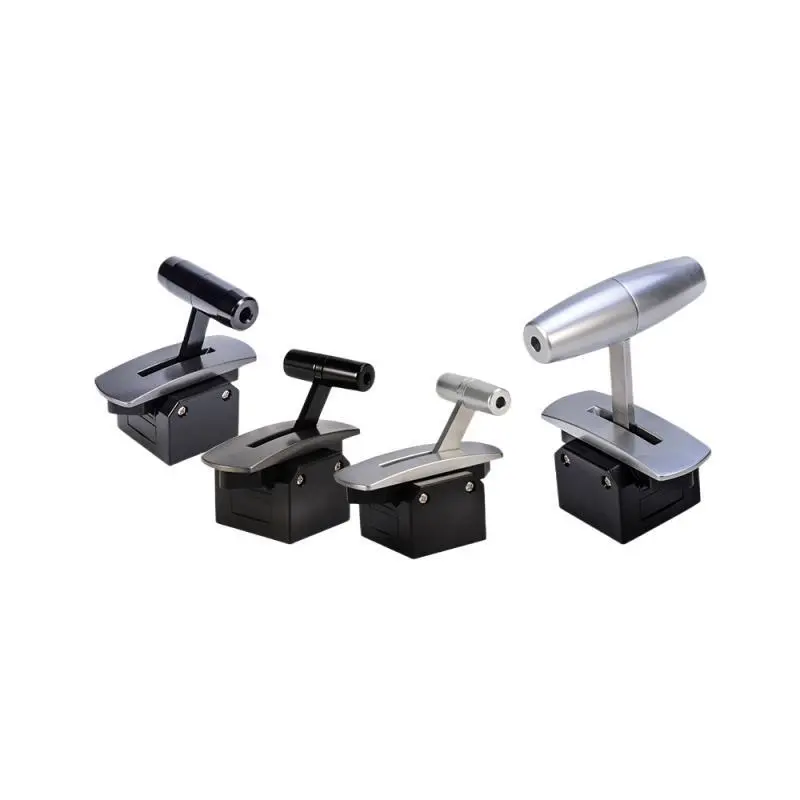

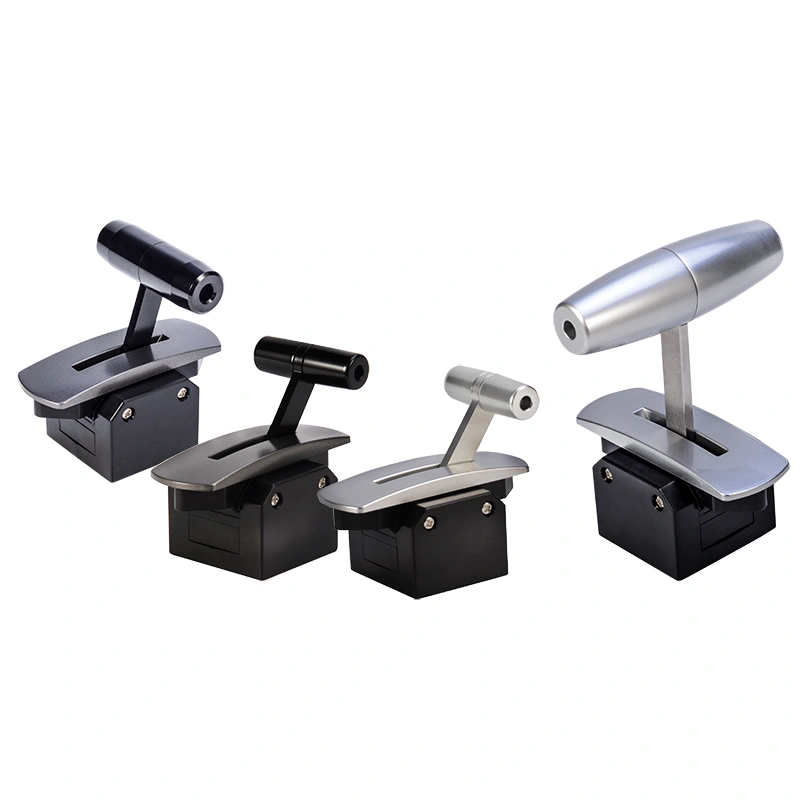

BRT78 single axis joystick for video switchers

BRT78 single-axis joysticks are the main accessory of video switchers products.

non-contact Hall sensor, long life, great feeling.

Description

  • Single axis, Hall sensor

  • Positioning: Frictional resistance positioning (standard); spring-loaded automatic return (90mm handle only)

  • Center gear: Center mechanical gear (optional), when passing the center position, the organic mechanical gear sense and gear ringing.

  • Operating angle: 76 degrees (±38°)

  • Power supply: DC5V, 24V, default is 5V

  • power consumption: 12MA (test conditions: 5V power supply, analog signal output)

  • Signal output: analog voltage 0-5V, current 0-20MA, USB

  • Life span: 10 million cycles.

  • Operating temperature: -40℃~+70℃

  • Protection: IP54
