10A Push Button Switch

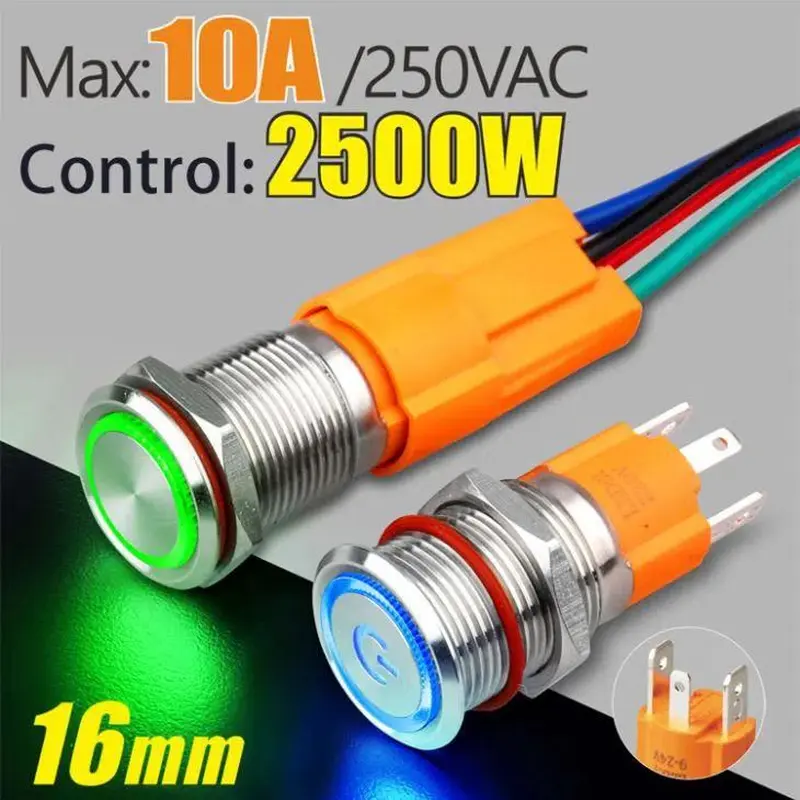

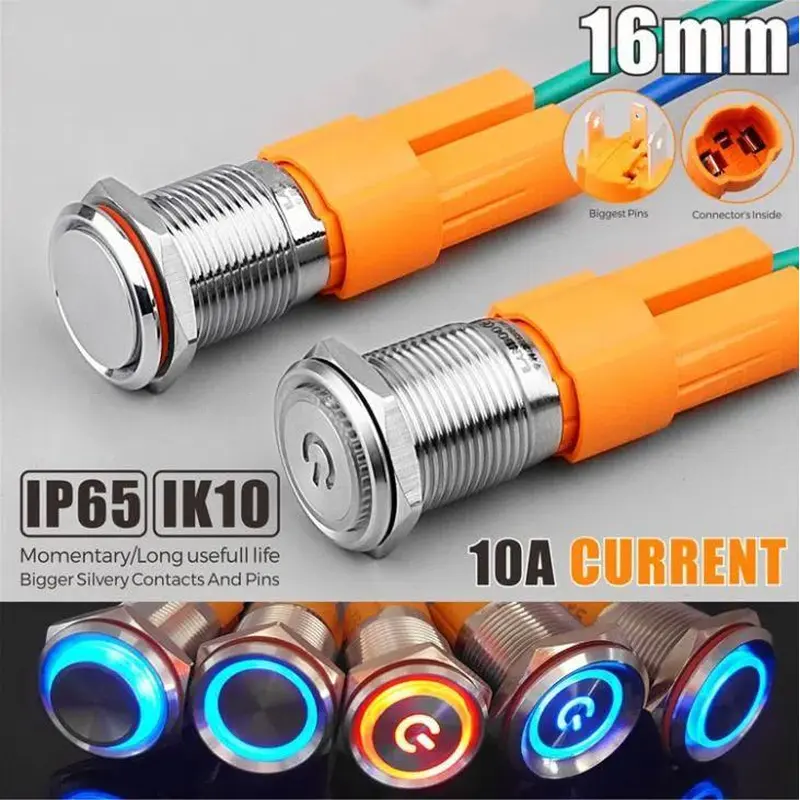

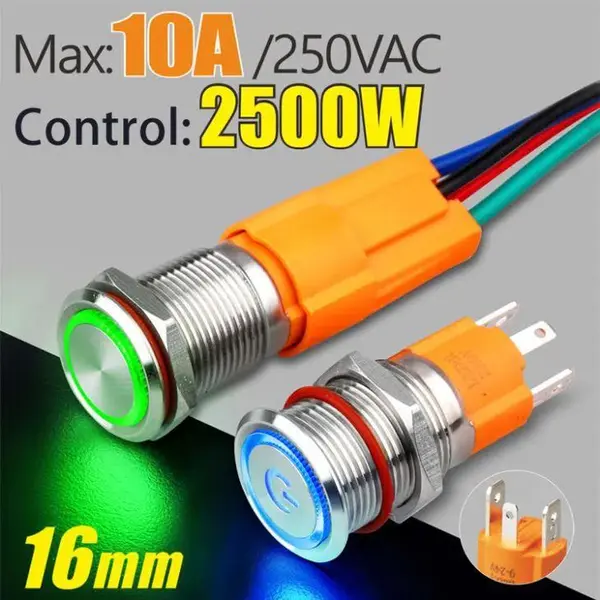

Diameter 16 mm, up to 10A/250VAC, patented products, stainless steel shell, sterling silver contact, beautiful appearance, soft LED light,10 amp push button switch

Description

Model Description
Model NO.LB-16B metal push button switch

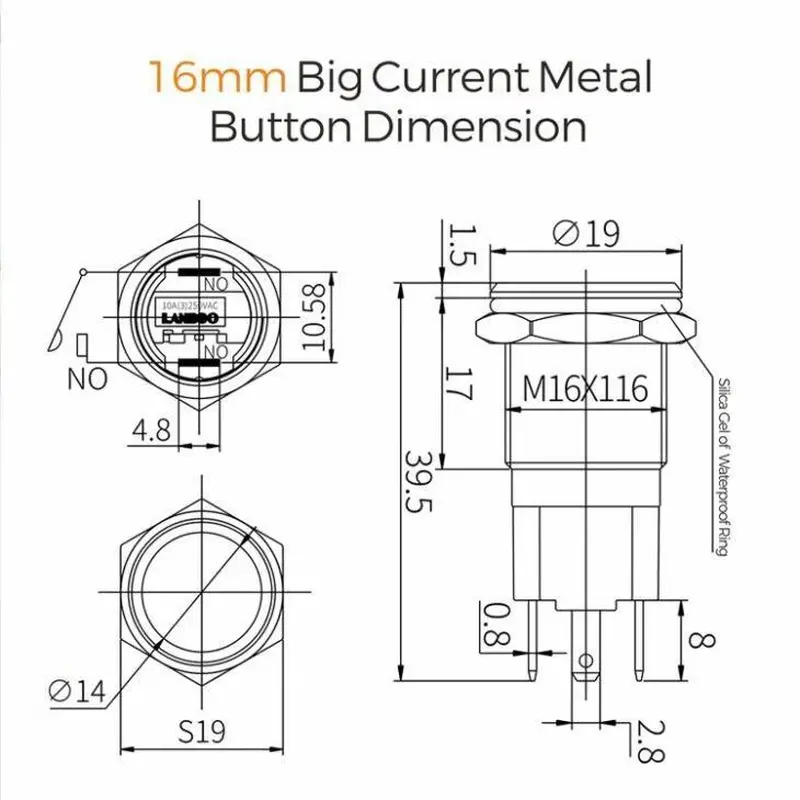

Mounting diameter16MM
Head shapePlat Head
Switch Combination1NO
Operation typeMomentary/self locking
Illuminating typeAnnular,power symbol

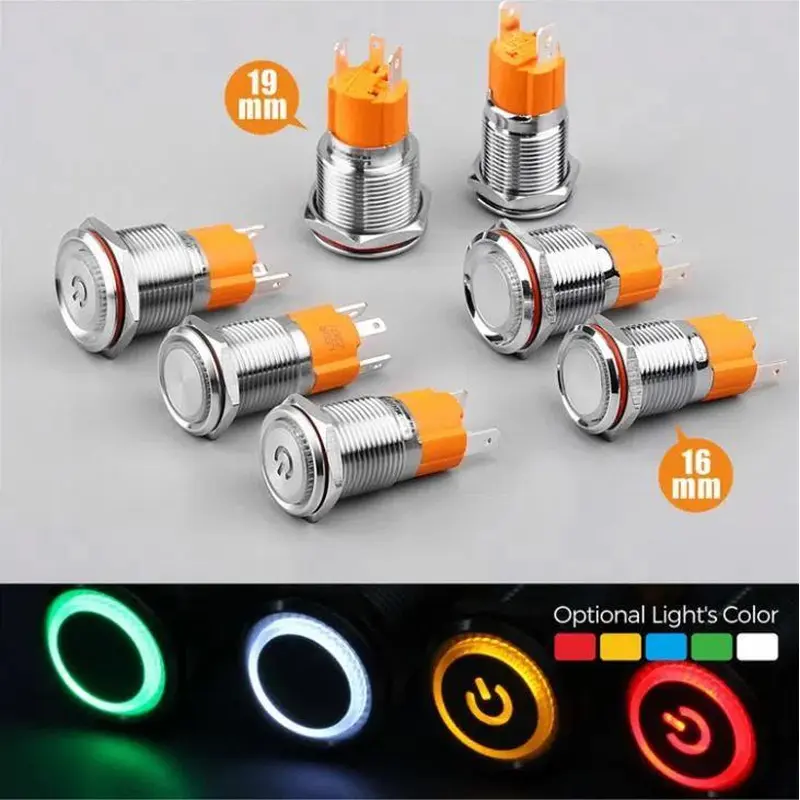

Illuminating colorred,green,blue,yellow,orange,white,purple,pink
Lamp voltage2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell materialStainless steel,aluminum oxide,copper plating


The Others Parameters
ProjectParameter
Contact typeSlow moving single contact
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength1000VAC min
Ambient Temperature-30℃~+80℃
Protection LevelsIK10
Electrical Life

Rated:2A250VAC-

100,000 times

Rated:5A250VAC-50,000 times
Rated:8A250VAC-20,000 times
Reated:10A250VAC-20,000 times
Mechanical LifeMomentary-800,000 times
Latching-200,000 times

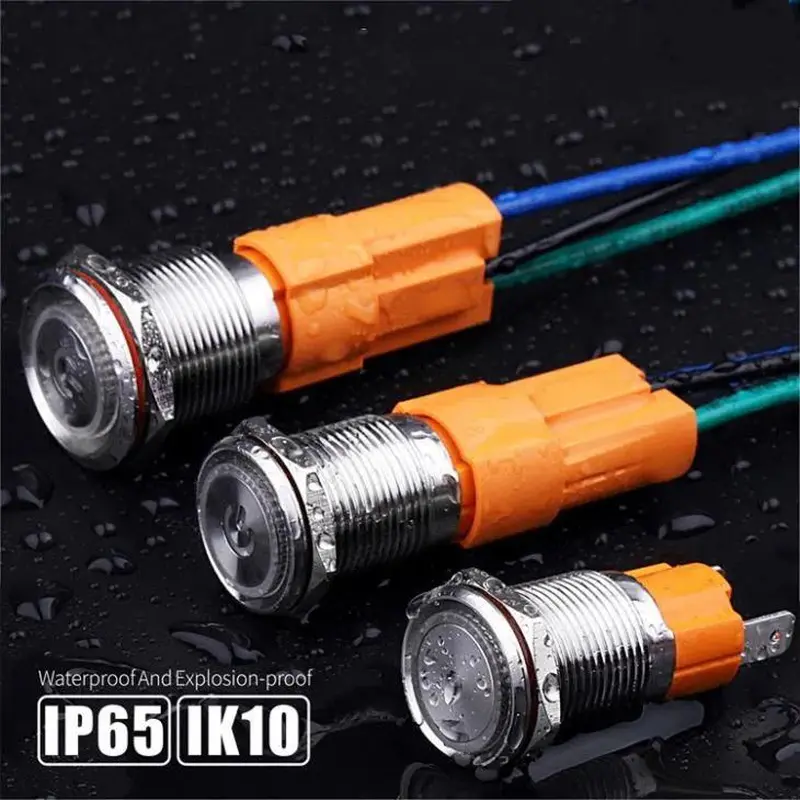

WaterproofIP65
ProjectParameter
Operation ScheduleConnected:1.5mm,Total:3.5mm
Actuating Forceabout 8N
Mounting panel thickness≤13mm. customised the others
Nut torque5~14N.m
Outshell/Press KeyStainless Steel/Aluminum Oxide/Copper plate
DiffuserPC
NutNickel brass
Base Seat
Bottom SeatPA66
PinsH65 Silver Plated
ContactEnvironment-friendly Silver Contact
SpringImported steel wire


Switch Rated Load
ProjectParameter
Reated Insulation VoltageAC250V
Fusing Current15A
Rated VoltageDC12VDC24VAC110VAC250V
Rated CurrentNonreactive Load10101010
Inductive Load3333


Led Lamp Parameters
ProjectParameter
Led typeHigh Brightness LED lamp,cool
Luminous colorRed,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated VoltageAC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current≤20mA
Reference Life40,000hours
