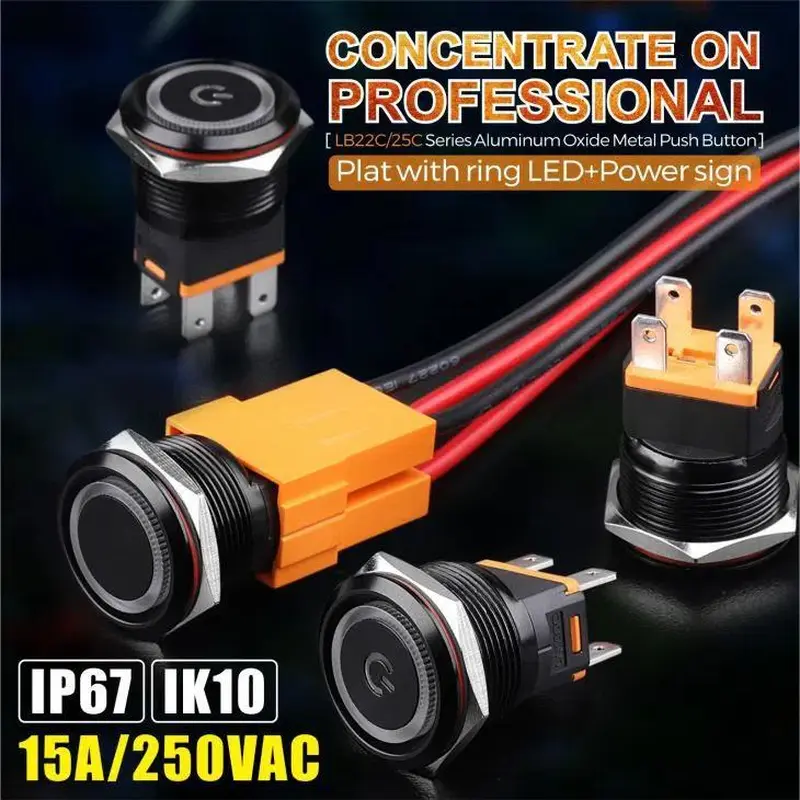

15 Amp Momentary Push Button Switch

High current switch innovator, 15A/ 250VAC, can control high power load, 2NO contact, aluminum oxide black shell, customizable other color shell

Description

Model Description
Model NO.LB-22C metal push button switch

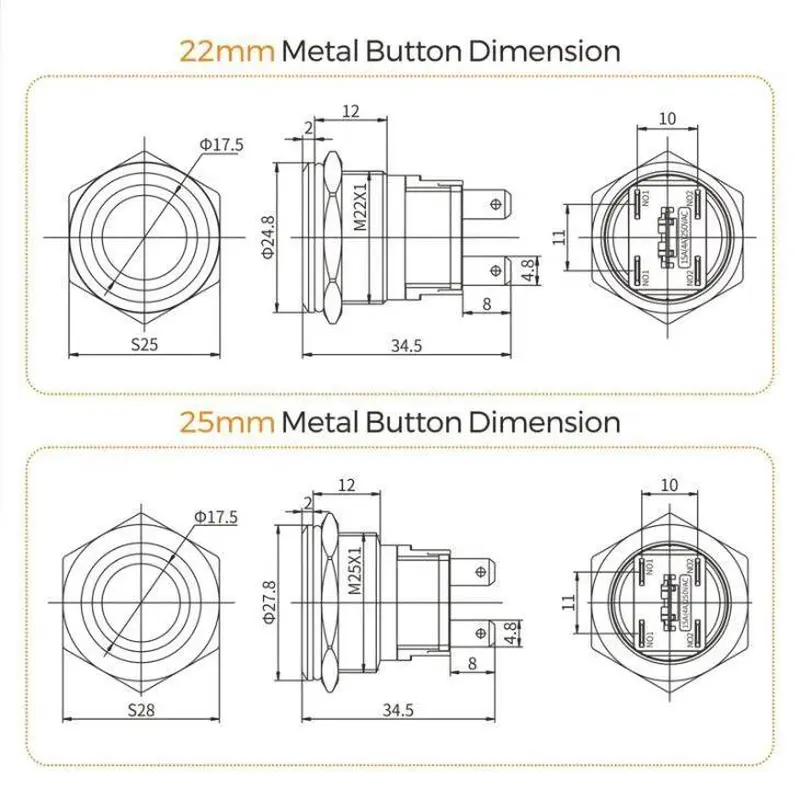

Mounting diameter22MM
Head shapeFlat Head
Switch Combination2NO
Operation typeMomentary/self locking
Illuminating typeAnnular,power symbol
Illuminating colorred,green,blue,yellow,orange,white,purple,pink
Lamp voltage2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell materialStainless steel,aluminum oxide,copper plating


The Others Parameters
ProjectParameter
Contact typeSlow moving double contact
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength2000VAC min
Ambient Temperature-30℃~+80℃
Protection LevelsIK10
Electrical Life

Rated:2A250VAC-120,000 times

Rated:5A250VAC-60,000 times
Rated:10A250VAC-30,000 times
Reated:15A250VAC-20,000 times
Mechanical LifeMomentary-800,000 times
Latching-200,000 times

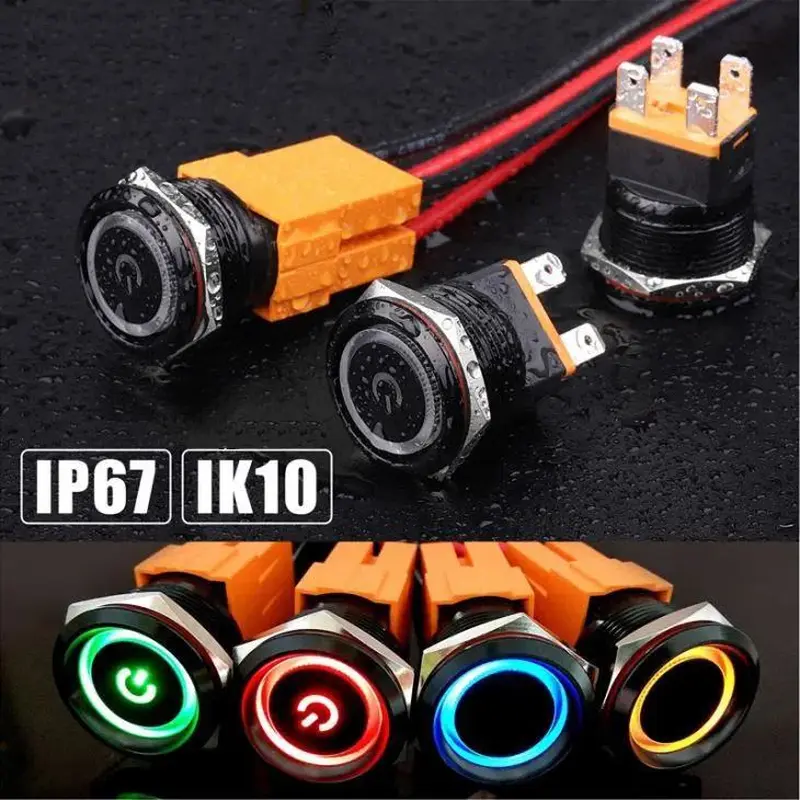

WaterproofIP67
ProjectParameter
Operation ScheduleConnected:1.8mm,Total:3.5mm
Actuating Forceabout 11N
Mounting panel thickness≤4mm. customised the others
Nut torque5~14N.m
Outshell/Press KeyStainless Steel/Aluminum Oxide/Copper plate
DiffuserPC
NutNickel brass

Base Seat

Bottom Seat

PA66
PinsH65 Silver Plated

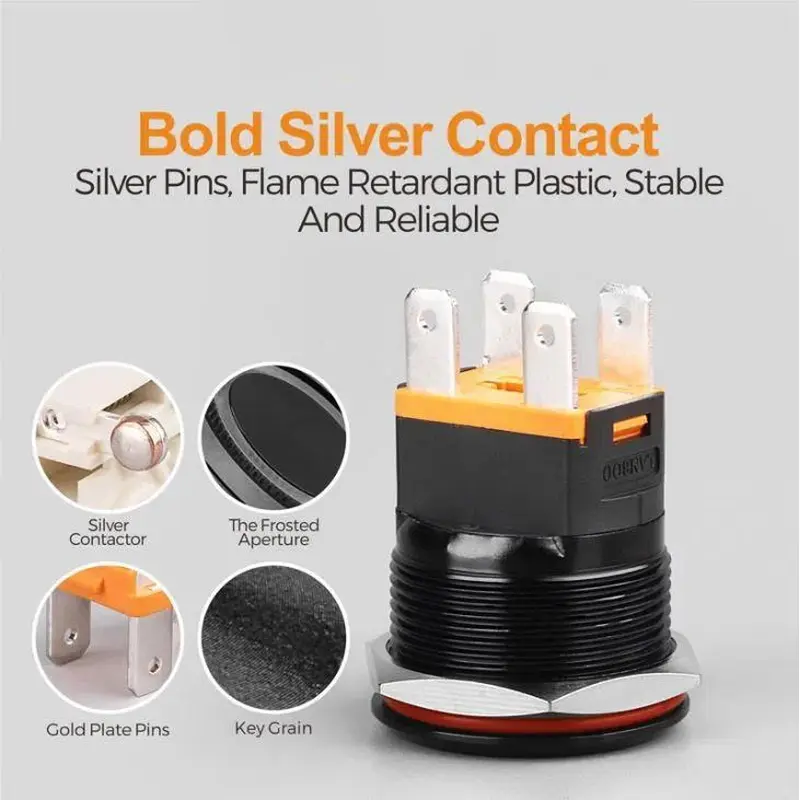

ContactEnvironment-friendly Silver Contact
SpringImported steel wire


Switch Rated Load
ProjectParameter
Reated Insulation VoltageAC250V
Fusing Current20A
Rated VoltageDC12VDC24VAC250V
Rated CurrentNonreactive Load181515
Inductive Load544


Led Lamp Parameters
ProjectParameter
Led typeHigh Brightness LED lamp,cool
Luminous colorRed,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated VoltageAC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current≤20mA
Reference Life40,000hours
