12v 24v Push Button Switch

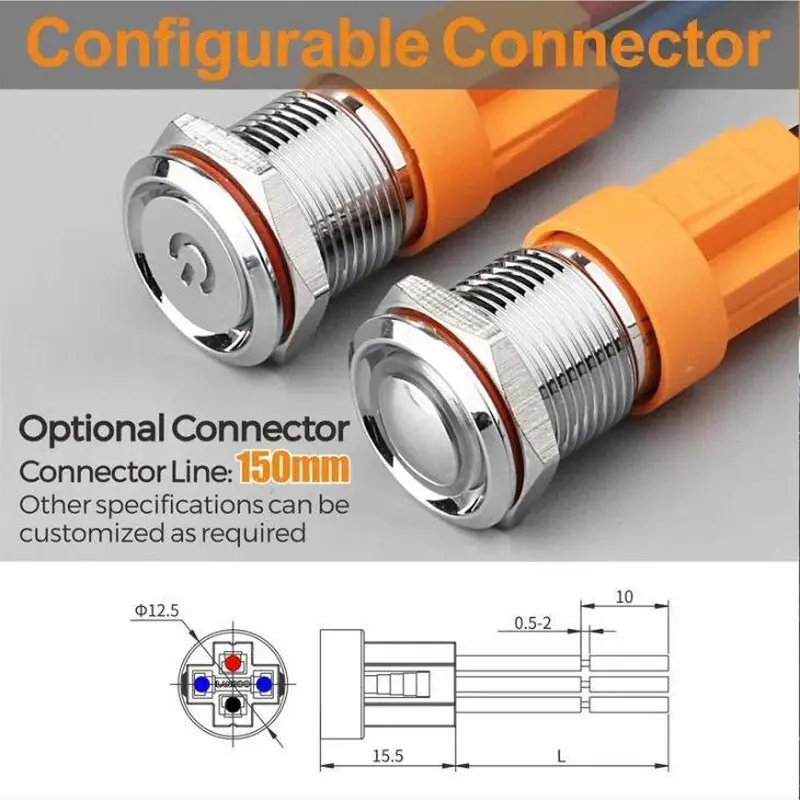

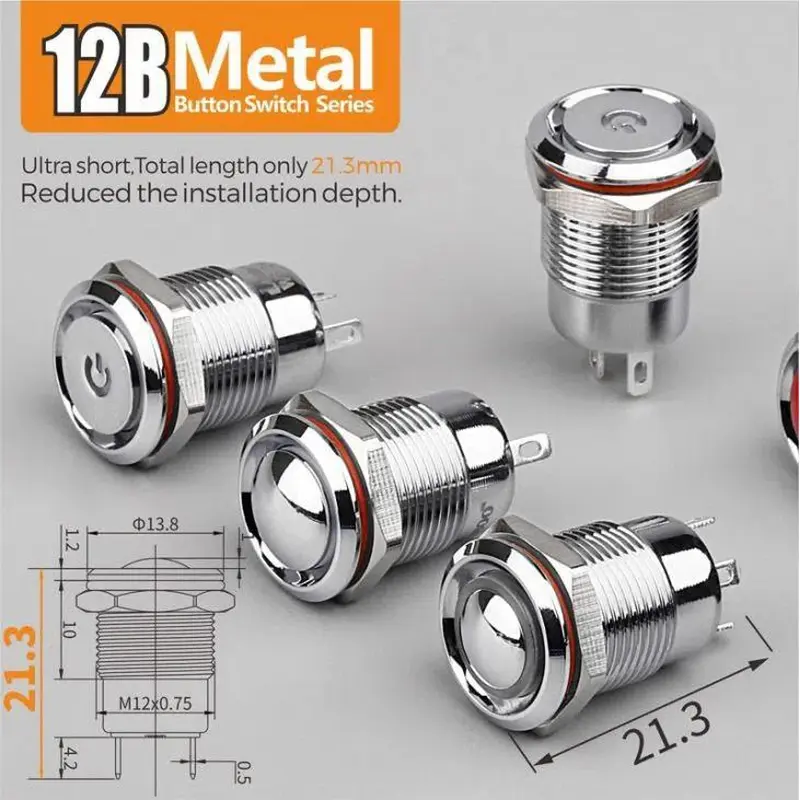

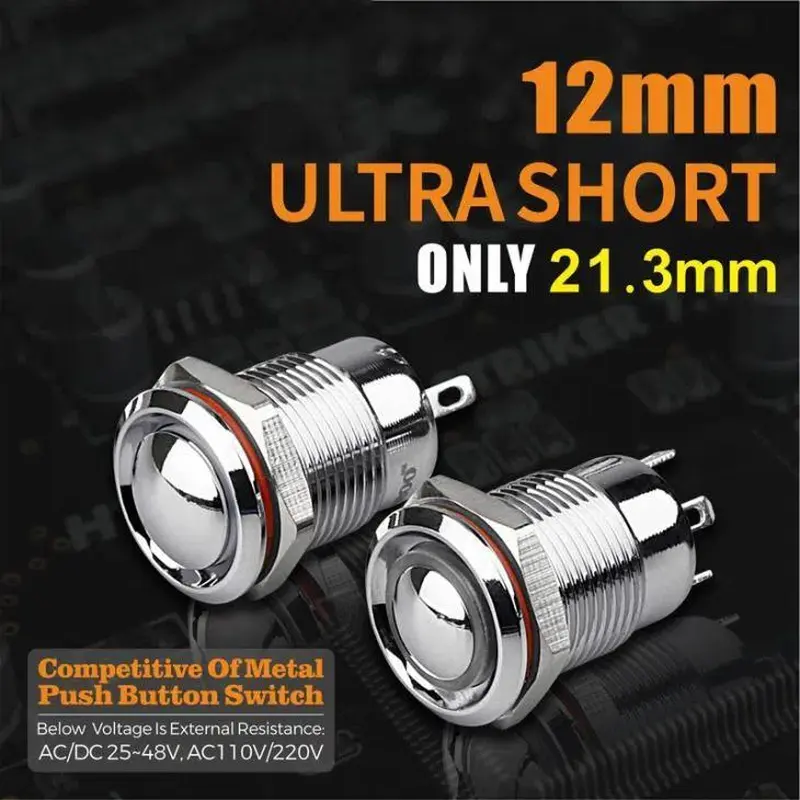

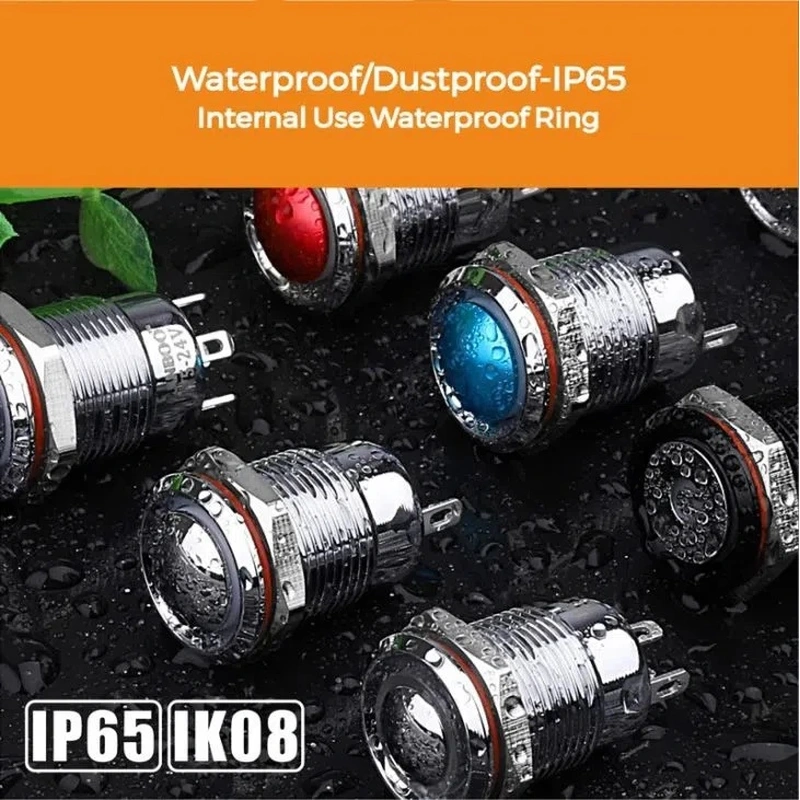

12V 24V push button switch, ultra short mounting size, suitable for small space installation, only 21.3 mm length, optional connector

Description

Model Description

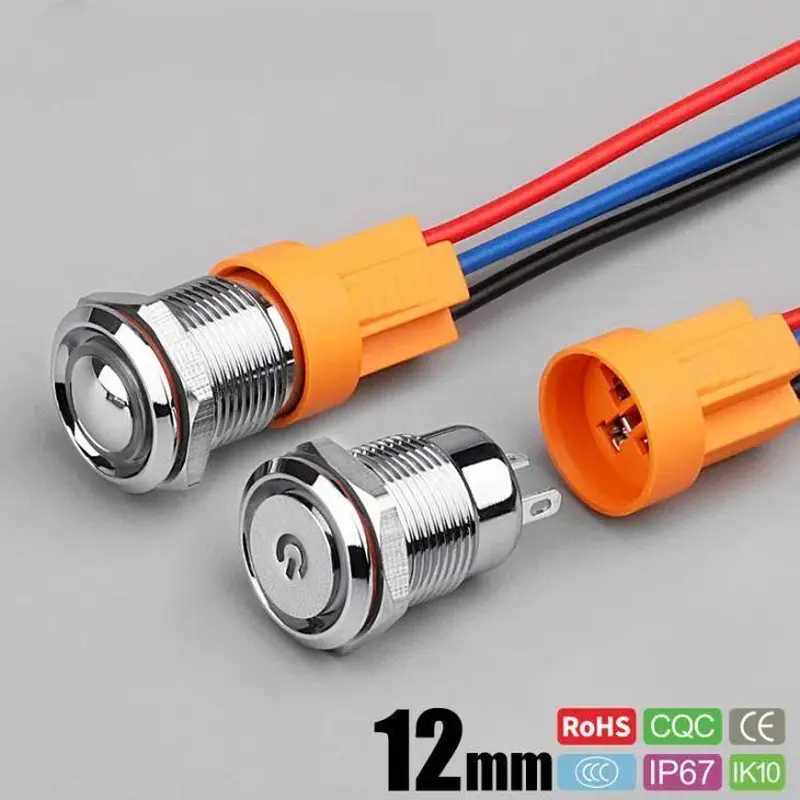

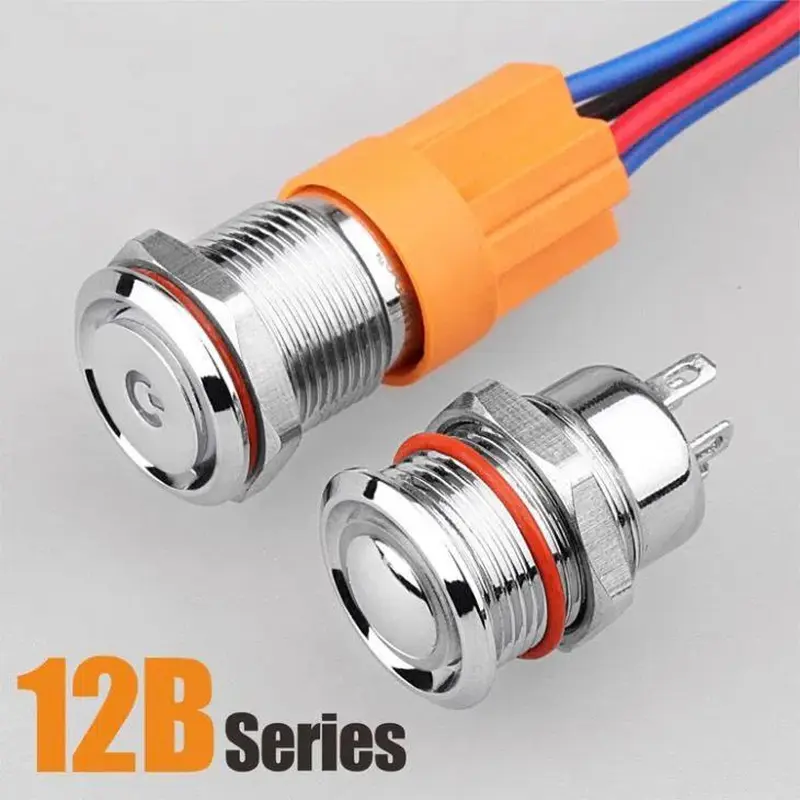

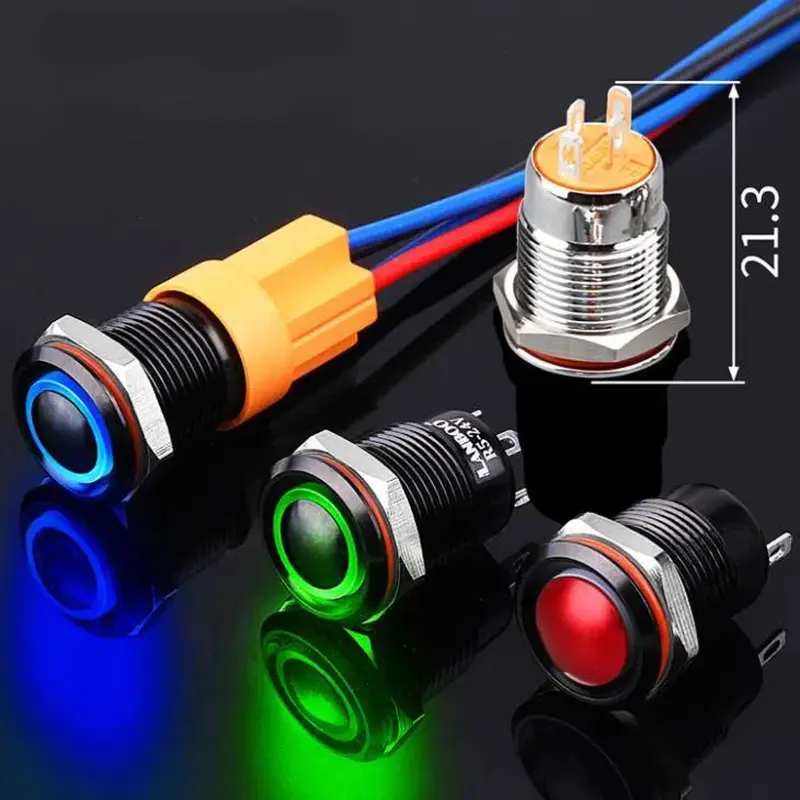

Model NO.LB-12B2 metal push button switch
Mounting diameter12MM
Head shapeFlat Head/High Head
Switch Combination1NO
Operation typeMomentary/self locking
Illuminating typeAnnular,power symbol
Illuminating colorred,green,blue,yellow,orange,white,purple,pink
Lamp voltage2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell materialStainless steel,aluminum oxide,copper plating


The Others Parameters
Project
Parameter
Contact typeSlow moving double contact
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength1000VAC min
Ambient Temperature-30℃~+80℃
Protection LevelsIK08
Electrical Life

Rated:0.2A24VAC-100,000 times

Rated:2A24VAC-50,000times
Mechanical LifeMomentary-600,000 times
Latching-200,000 times
WaterproofIP65
ProjectParameter
Actuating Forceabout 4N
Mounting panel thickness≤8mm. customised the others
Nut torque5~10N.m
Outshell/Press KeyStainless Steel/Aluminum Oxide/Copper plate
DiffuserPC
NutNickel brass

Base Seat

Bottom Seat

PA66
PinsH65 Silver Plated
ContactEnvironment-friendly Silver Contact
SpringImported steel wire


Switch Rated Load
ProjectParameter
Reated Insulation VoltageAC250V
Heating current lth2A
Rated VoltageDC24VAC220V
Rated CurrentNonreactive Load11
Inductive Load0.50.5


Led Lamp Parameters
ProjectParameter
Led typeHigh Brightness LED lamp,cool
Luminous colorRed,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated VoltageAC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current≤20mA
Reference Life40,000hours
